Alignment Setup

Alignment Setup

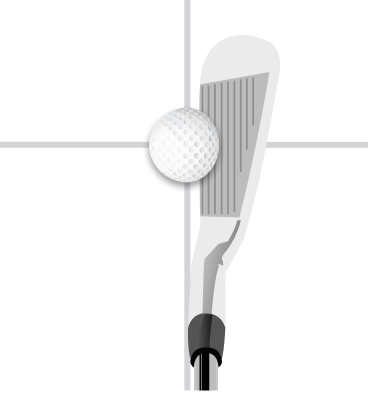

To ensure accurate swing data with Ggrip, it is essential to set up with the clubface parallel to the target. If the clubface is not aligned properly and you hit with a closed or open face, the data captured will reflect these errors, leading to incorrect or unwanted results.

For the most accurate swing analysis, always make sure to align your clubface parallel to the target before swinging. This will ensure that the data you receive accurately represents your true swing path and grip strength, giving you the most reliable feedback for improvement.

How to Use This Screen

Swing

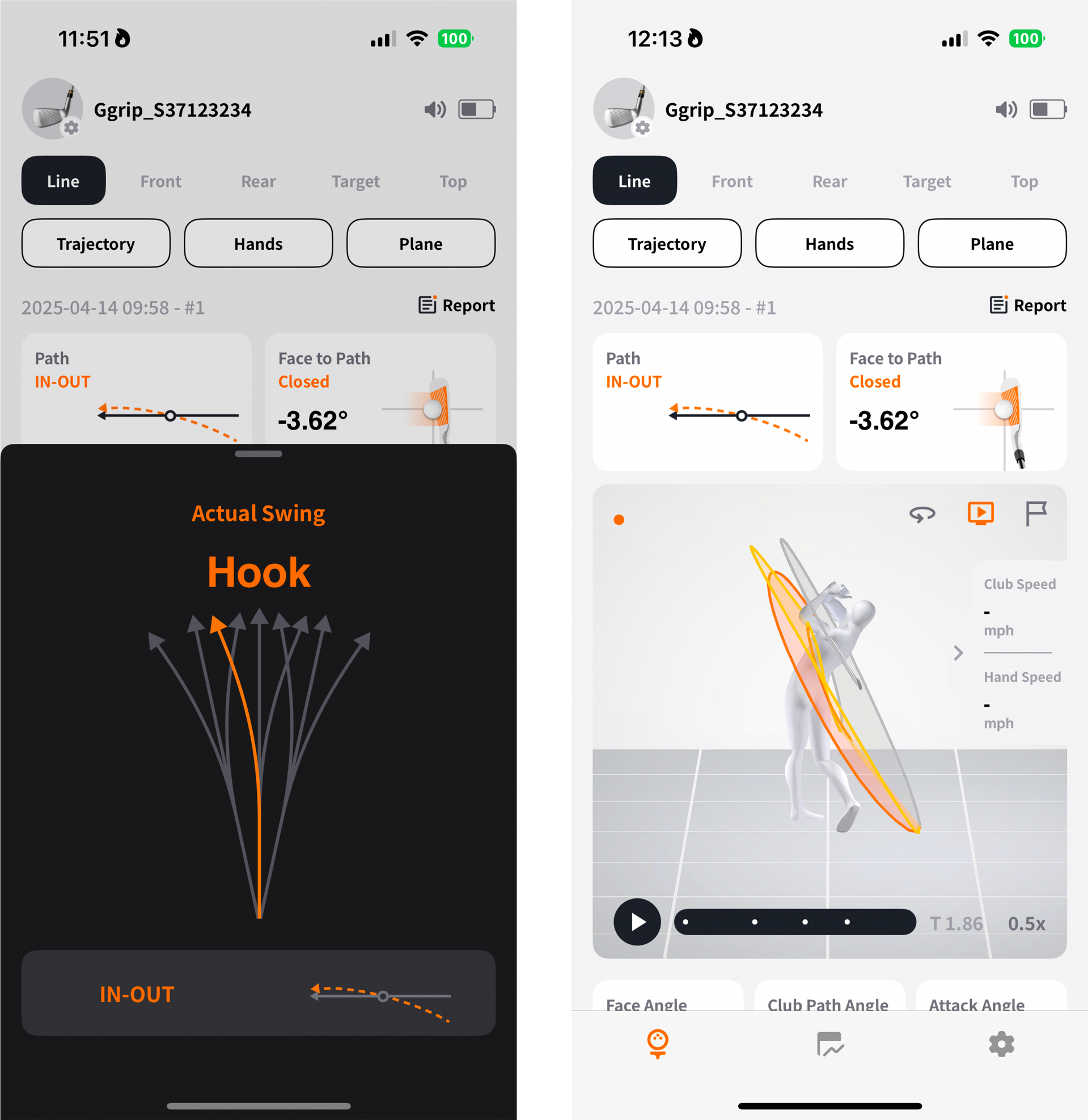

When connected, after completing a swing, Ggrip starts transmitting data to the application.
The screen displaying the Path and Ball Flight will automatically disappear after approximately 3 seconds.
Once all data is transmitted, you can visually check your swing through an avatar.

How to Use This Screen

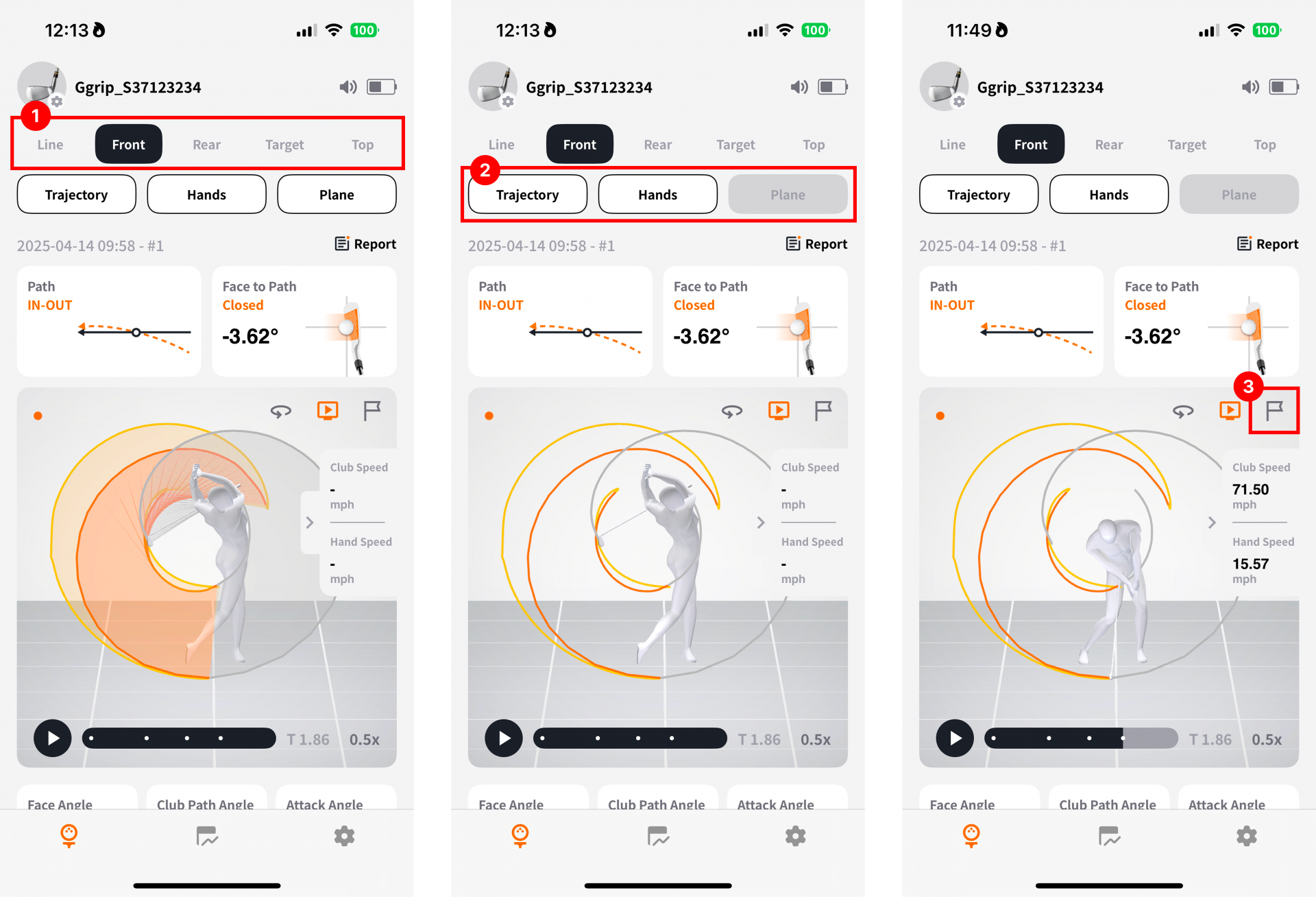

Use the top tabs (Line, Front, Rear, Target, Top) to view your swing from different angles.
Tap the Trajectory, Hands, and Plane buttons to selectively show or hide each data layer.
Press the Flag icon to display your swing metrics exactly at the point of impact.

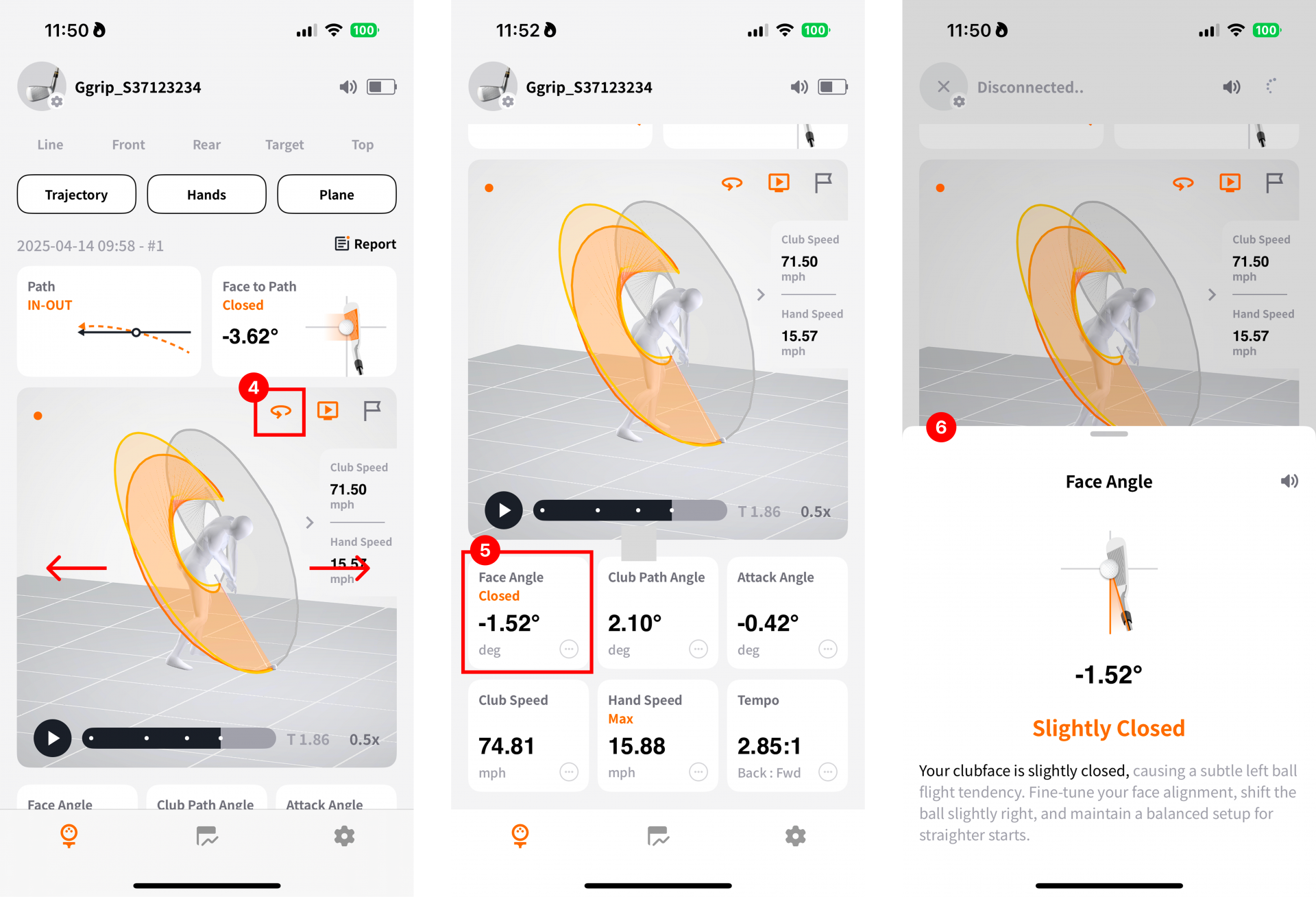

4. Press the rotate button to enable scrolling left and right to view your swing from various angles.
5. Additionally, scroll down and click on a value to see detailed explanations.
6. You can view detailed definitions and personalized improvement tips.

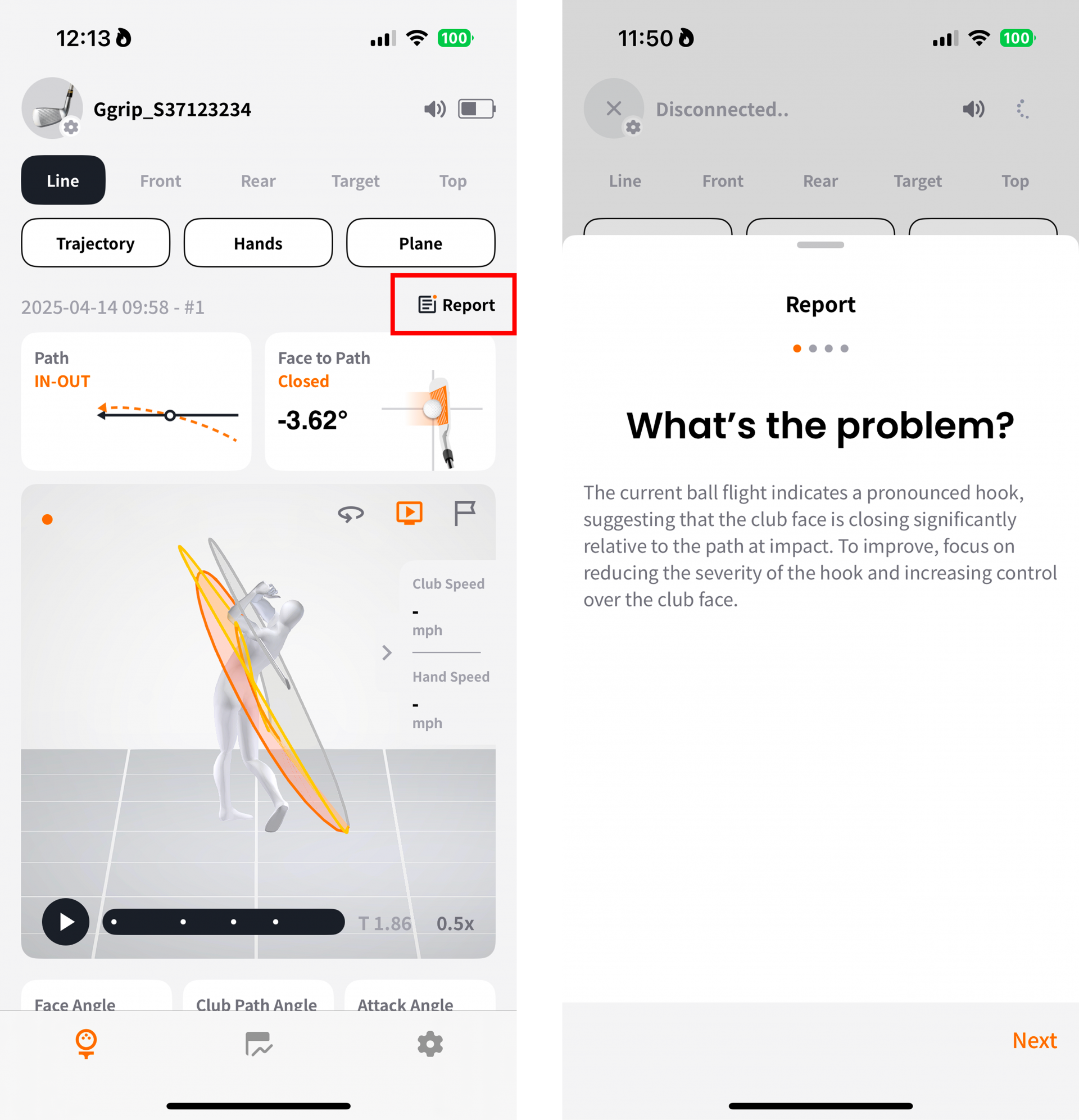

And, with AI analysis, you can also get personalized adjustments and practice drills to improve your swing immediately.

Landscape Mode

If you rotate your device horizontally, the screen switches to landscape mode, allowing you to view the data on a wider screen.

Checking Live Data

Checking Live Data

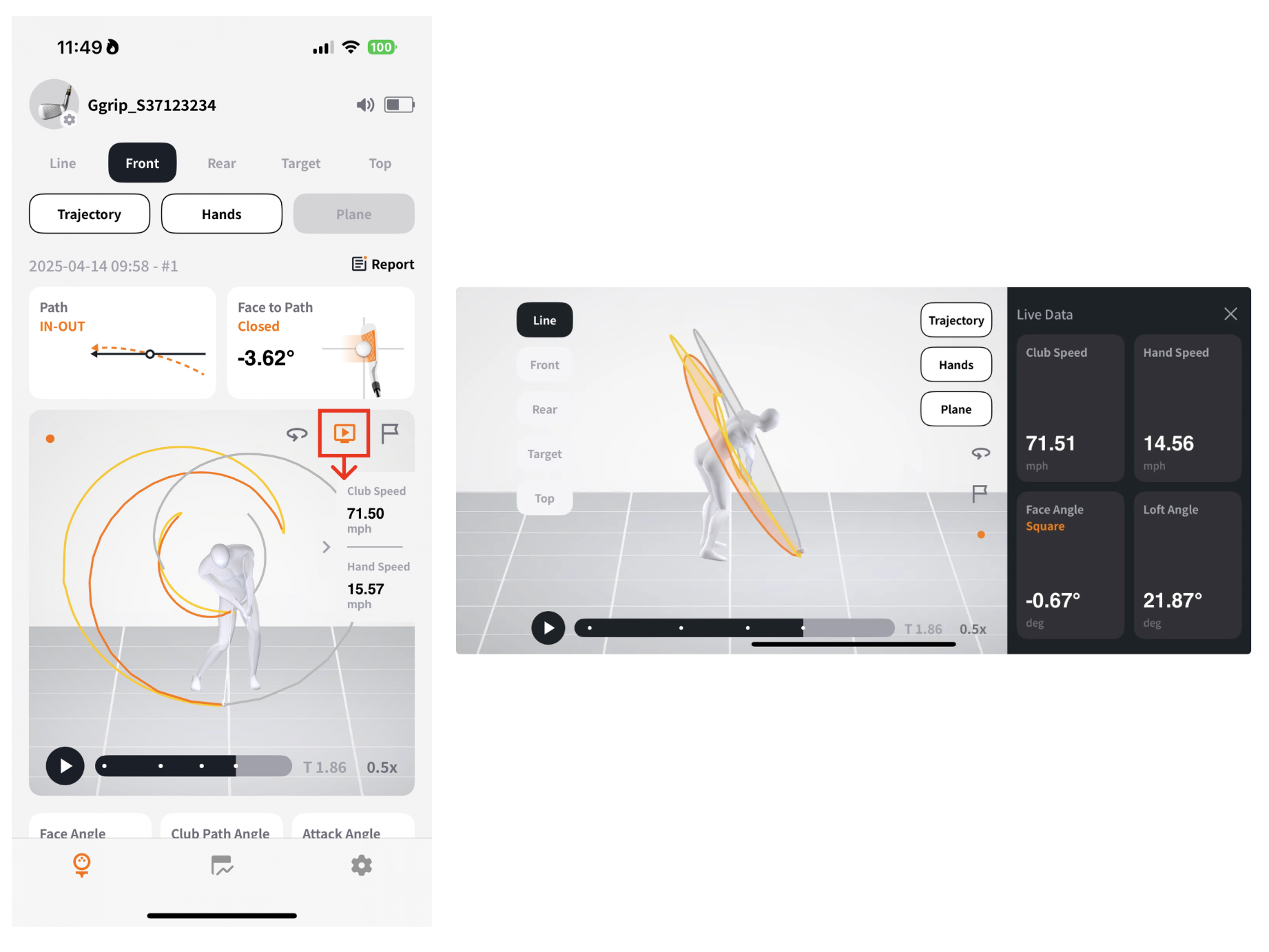

You can open or close the Live Data window by tapping the Live button or the ">" button. This data corresponds to the current position of the playback bar.
Tapping the Live Data window activates a dedicated Live Data landscape mode, allowing you to view the Live Data on a larger screen.

Checking Previous Swing Logs

Checking Previous Swing Logs

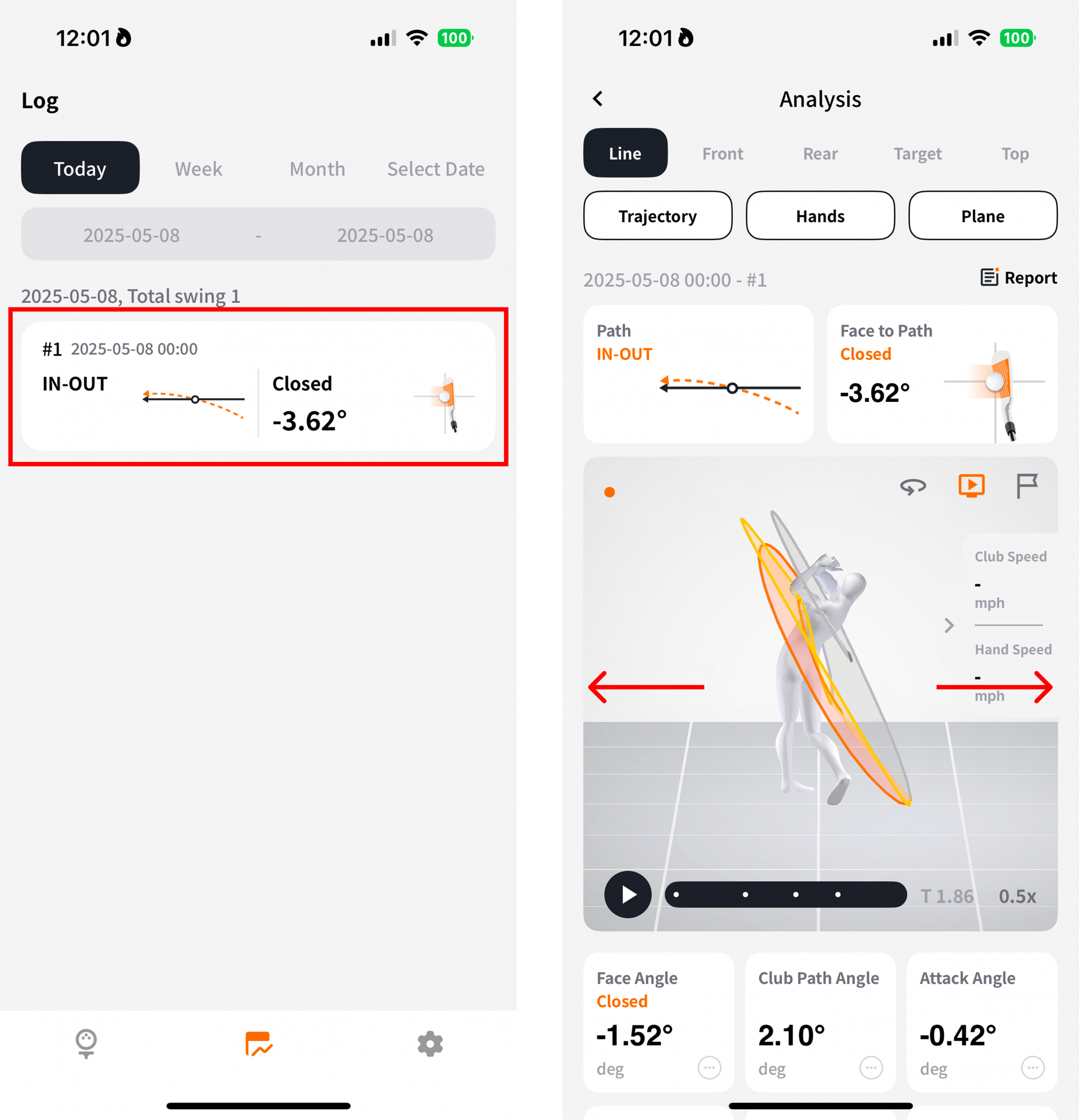

Click on the second tab to view previous logs. You can scroll left or right to check previous or next data.

Device Setting

Device Setting

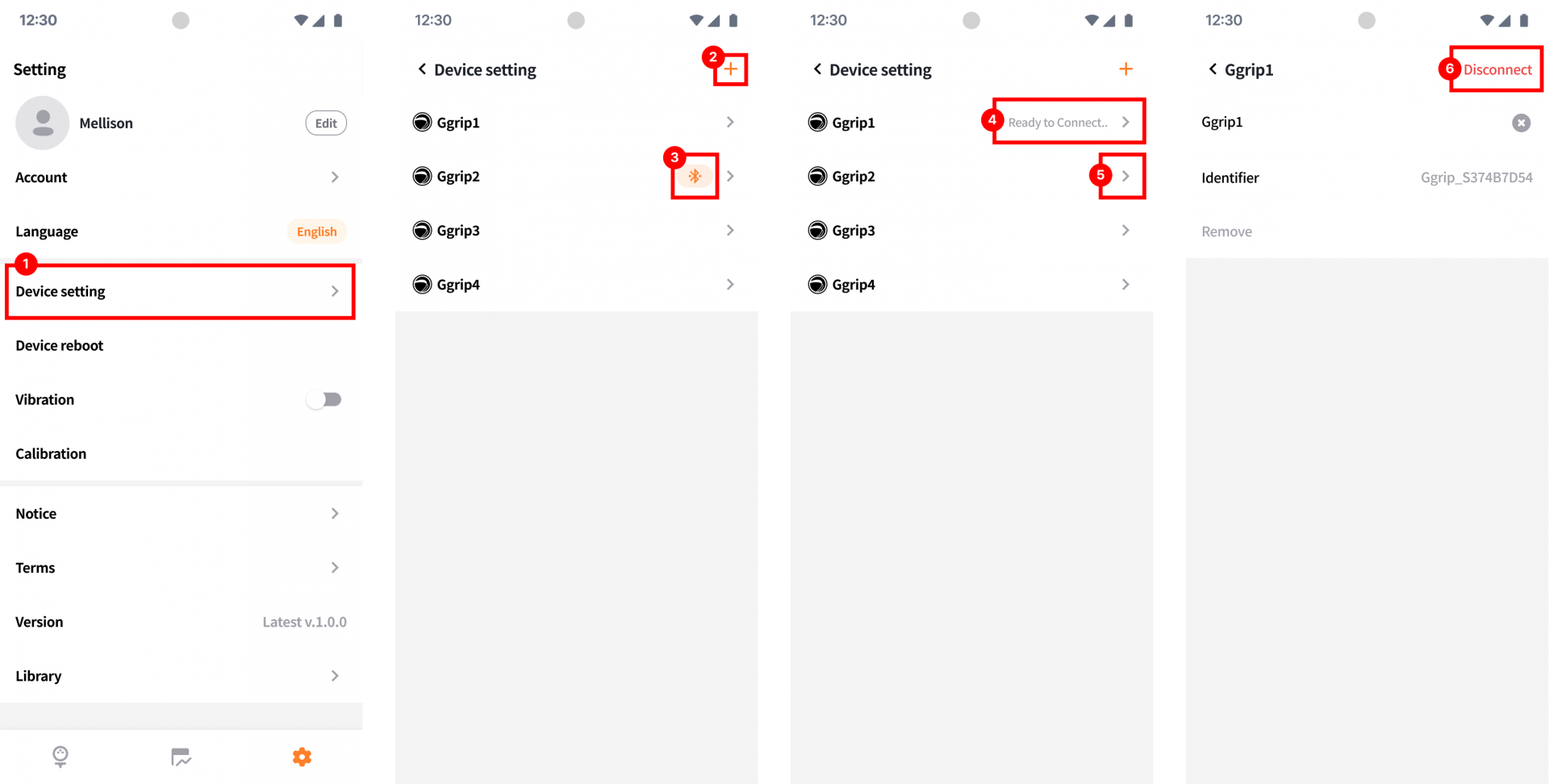

On the Settings screen, you can access Device setting.
Tap the “+” button in the top-right corner to begin scanning for a new G-grip device.
Connected devices are marked with a Bluetooth icon in the list.
Devices that are pending connection or ready to connect are labeled “Ready to Connect..” in the list.
Tap the “>” arrow next to a device in the list to open its detail screen.
On the detail screen, tap “Disconnect” in the top-right corner to unpair the device.

Language Settings

Language Settings

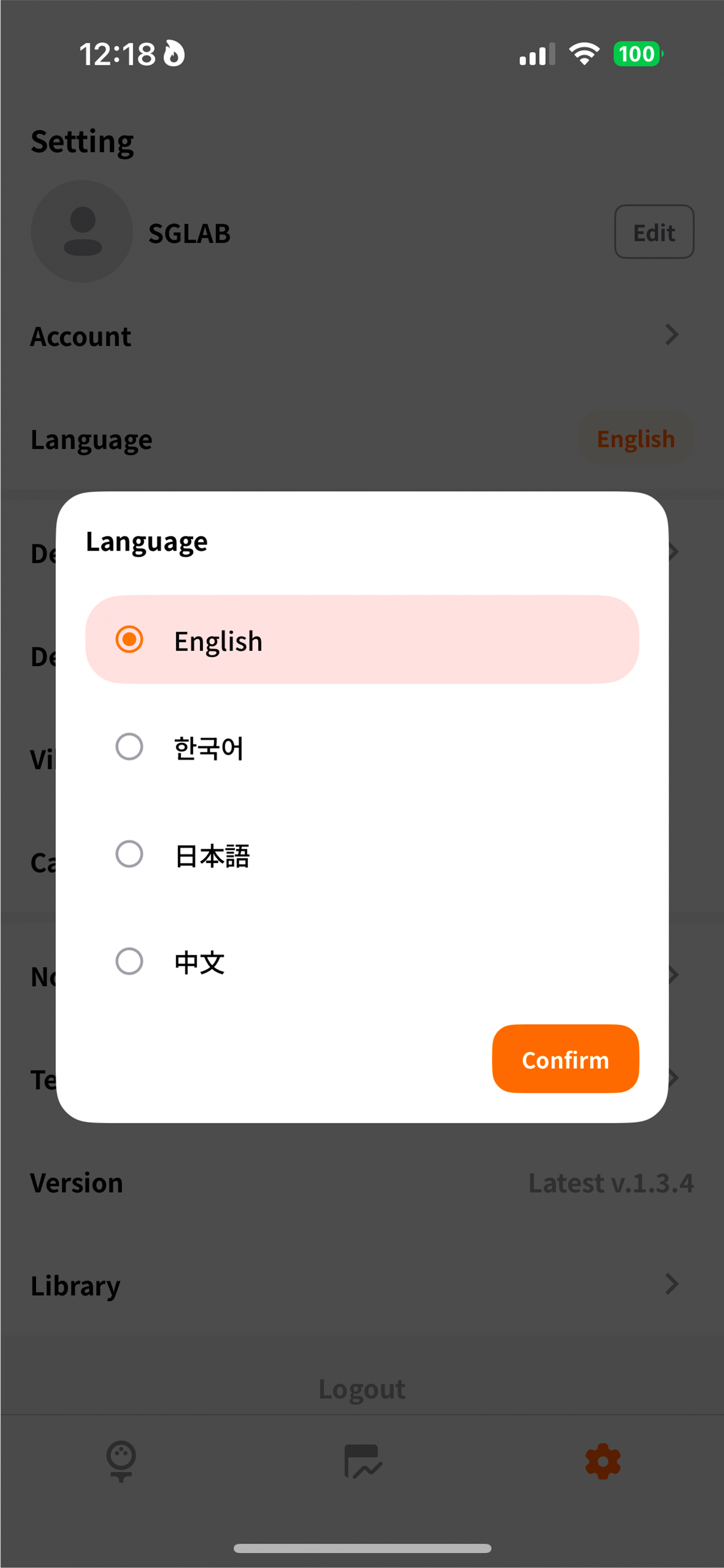

You can change the language by selecting “Language” in the Settings tab.
Supported languages: English, Korean, Japanese, Chinese
By default, the app’s language is automatically set to match the language of the store from which it was downloaded.
